DE-5000 Handheld LCR Meter

DE-5000 Handheld LCR Meter

$52.50
$52.50
Ga direct naar de productinformatie
DE-5000 Handheld LCR Meter
  • DE-5000 Handheld LCR Meter
  • DE-5000 Handheld LCR Meter
  • DE-5000 Handheld LCR Meter
  • DE-5000 Handheld LCR Meter
  • DE-5000 Handheld LCR Meter
  • DE-5000 Handheld LCR Meter
  • DE-5000 Handheld LCR Meter
  • DE-5000 Handheld LCR Meter
DE-5000 Handheld LCR Meter

DE-5000 Handheld LCR Meter

$52.50
$52.50
Verzendkosten worden berekend bij de checkout.

1. 100 / 120 / 1k / 10k / 100k Hz test frequency
2. Dual 19999/1999 display
3. Backlight
4. Ls / Lp / Cs / Cp / Rs / Rp / dissipation factor (D) / quality factor (Q) /phase angle/ ESR LCR auto selection
5. Auto Ranging mode
6. Auto Serial / Parallel mode
7. Components sorting function
*Selectable tolerance ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%, -20% +80%
8. Low battery indication

  • This LCR Meter is a 19999/ 9999 counts dual display, high accuracy LCR meter, which could measure Inductance/ Capacitance/ Resistance with secondary parameters including dissipation factor (D), quality factor (Q), phase angle , equivalent series/ parallel resistance (ESR or Rp).
  • This LCR Meter is fully auto ranging operation for AC impedance & DC resistance measurement. The user could measure the L/C/R components directly in “AUTO-LCR “ smart mode without selecting the function key.
  • Components could be measured in serial or parallel mode according to the DUT (device under test) impedance automatically.User could select the desired test frequencies of 100Hz/120Hz/1kHz/10kHz /100kHz.
  • The "Sorting"mode could help the user to make a quick sort for a bunch of components.

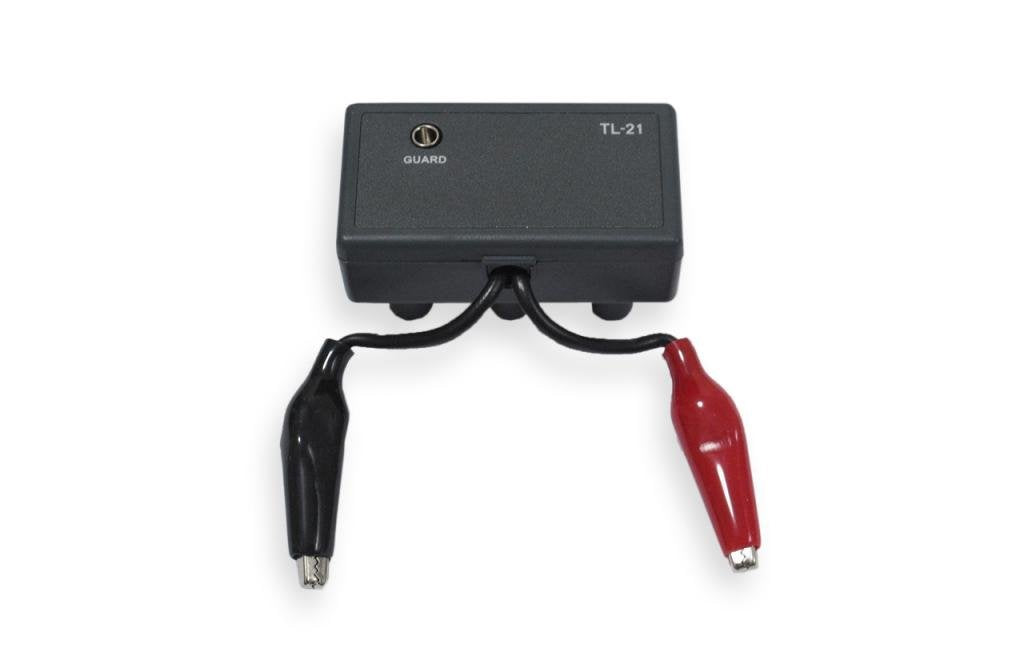

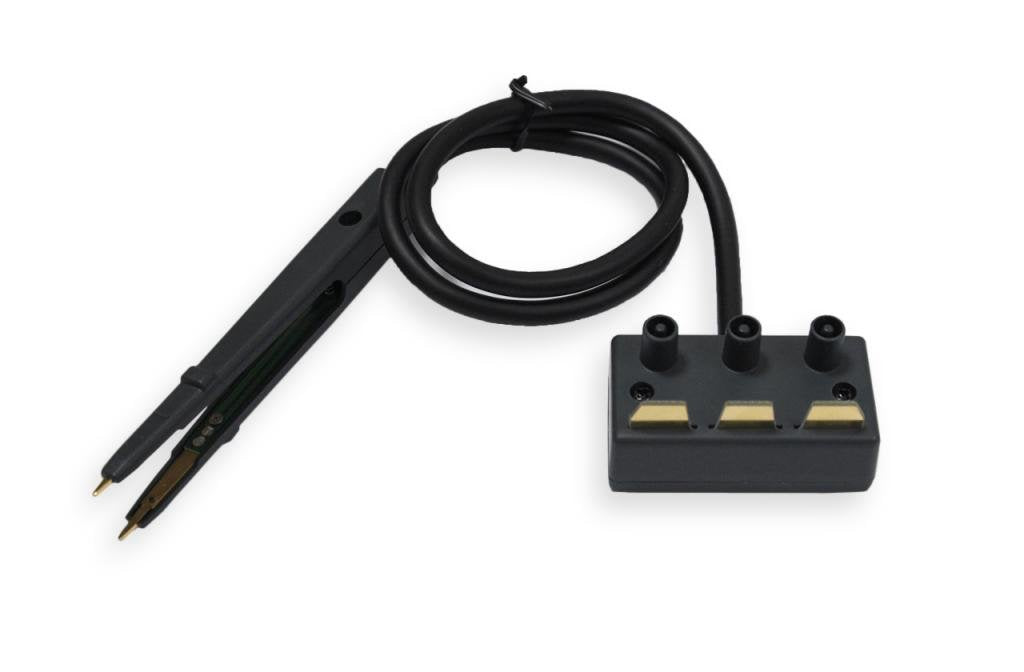

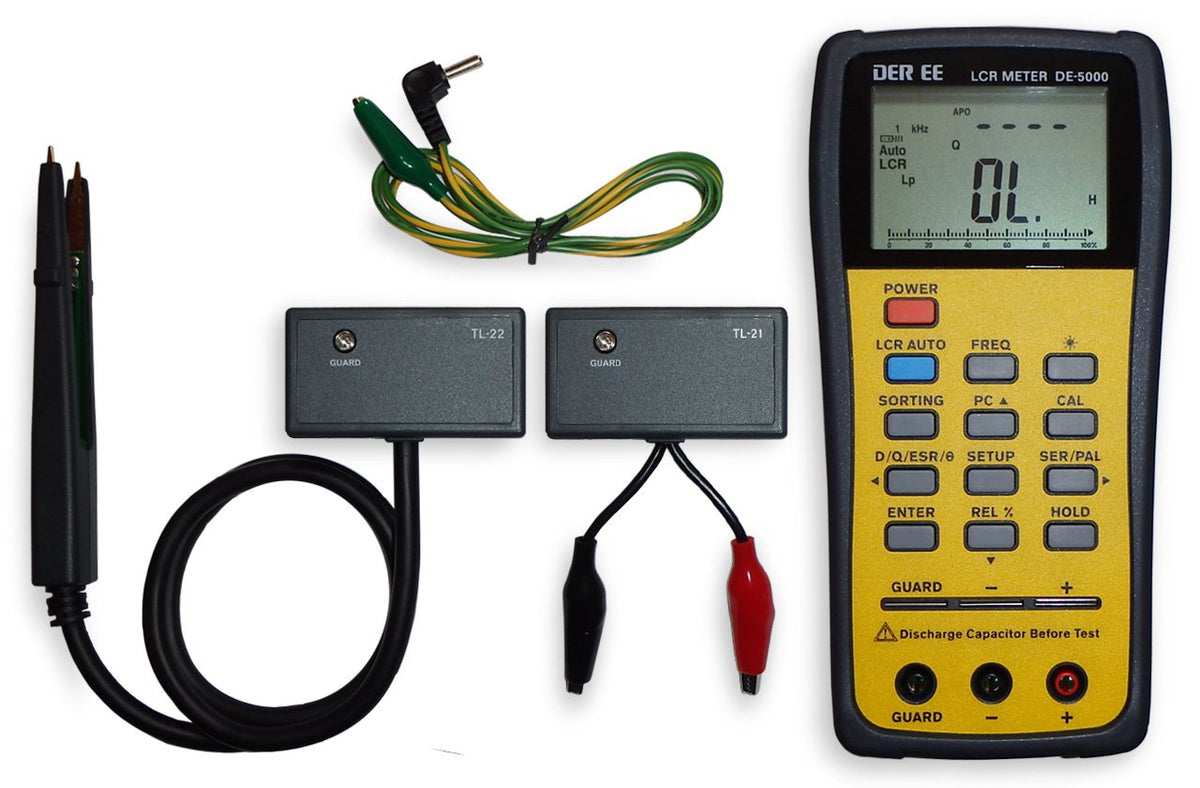

  • Standard Accessories: English PDF manual, DC9V Battery, Alligator test lead case(TL-21), SMD Tweezers case(TL-22), Guard Line(TL-23),,,,, Option: IR to USB cace *It isn't included.
› See more product details
