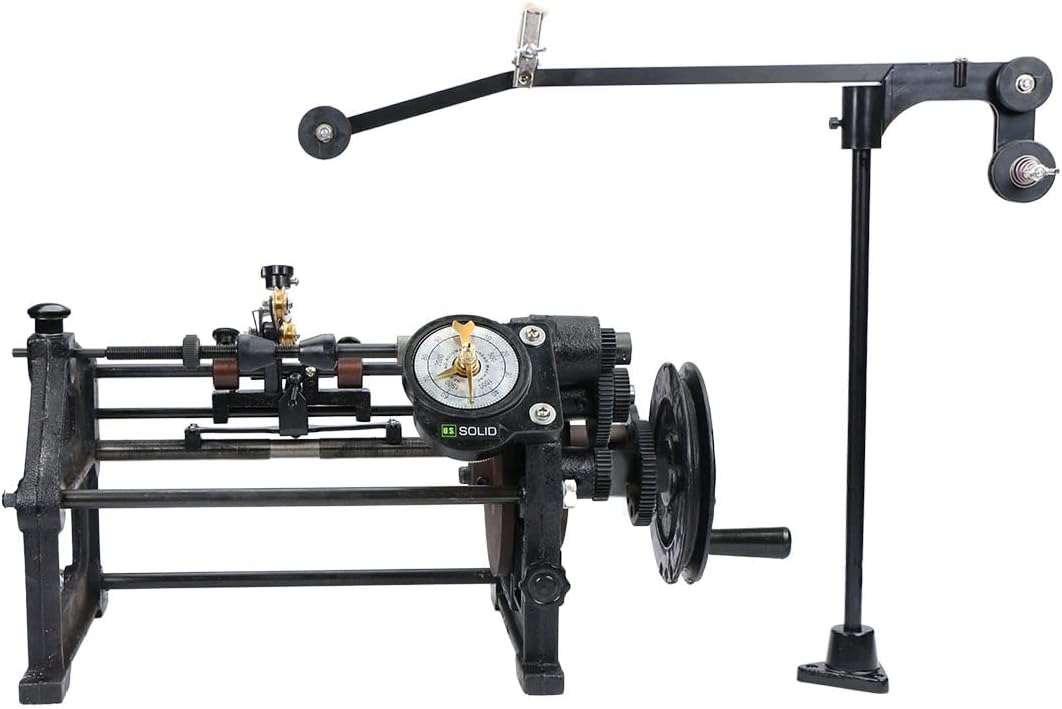

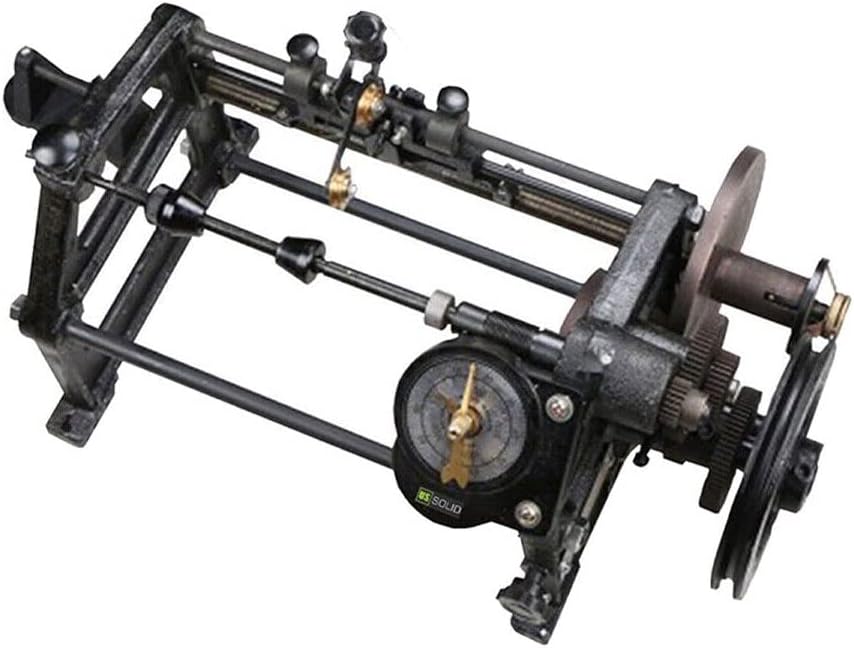

U.S. Solid NZ-2 Automatic Cable Laying Machine adopts manual gear drive system, and is counted by indicator. It supports automatic wiring by the mechanism control. It is used to wind coils which have less rounds and need to wire automatically.

Brand U.S. Solid
Suitable bobbin diameter 12-150 mm (0.47-5.91 inch)
Suitable bobbin height 6-110 mm (0.24-4.33 inch)
Counting range 0-2499 r
Suitable wire gauge 0.06-0.50 mm (AWG 24-42)
Suitable wire diameter 0.12-0.91 mm (0.005-0.036 inch)

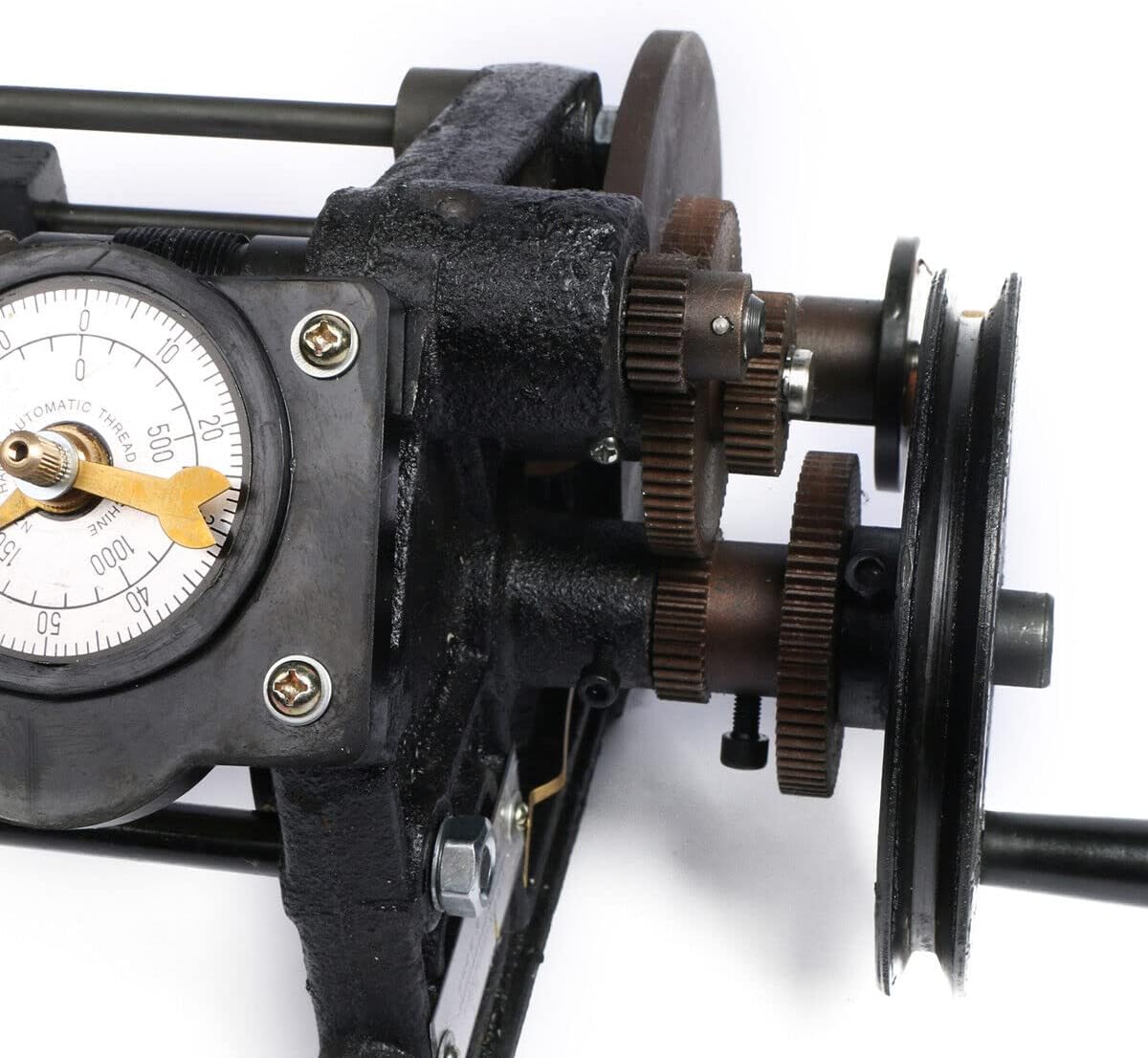

Transmission ratio 1:6 (fast); 1:1.5 (slow)
Package weight 15.9 kg (35.05 lb)
Package dimensions 51x33x34 cm (20.08x12.99x13.39 in)
  • Suitable for low-voltage transformers, automobile ignition coils, wire-wound resistors, electric meter parts and other flat-wound coils that need to be aligned in the telecommunications and electrical industries.

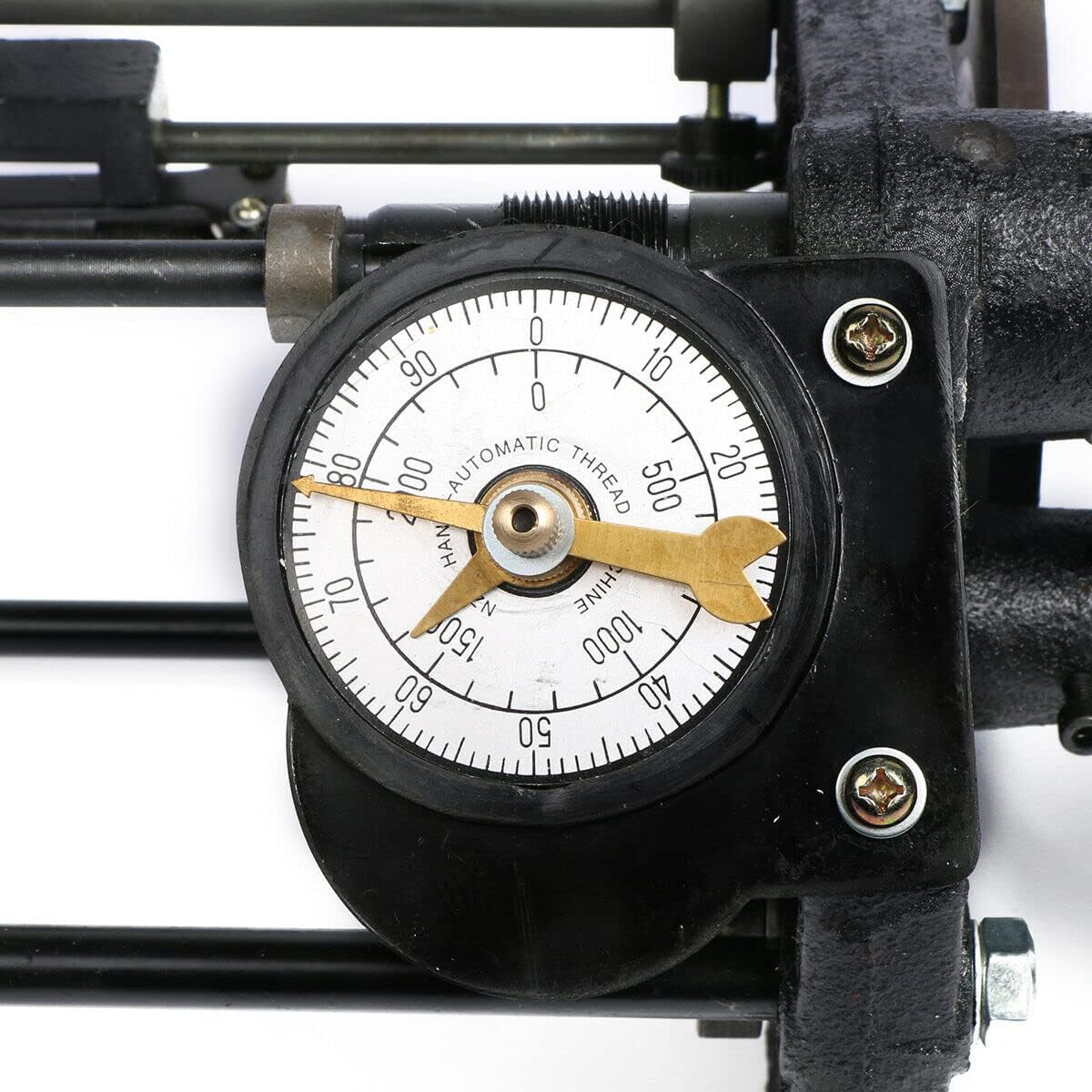

  • Equipped with a counter, which can count 2500 turns. The long needle turns 1 turn, the bobbin turns 100 turns; the short needle turns 1 turn, the bobbin turns 2500 turns.
  • The default transmission ratio is 1:1.5, and the applicable wire gauge range is 20 SWG-30 SWG. By switching the gear direction, you can adjust to a faster transmission ratio of 1:6, and the applicable wire gauge range is 30 SWG-40 SWG.
  • The diameter of coils fit to be wound: 12-150 mm (0.47-5.91 inches)
  • The length of coils fit to be wound: 6-110 mm (0.24-4.33 inches)
